- Easily share peripheral devices using the built-in USB 3.0 hub
- Astonishing picture quality with support for Ultra HD 4K resolutions
- Full multimedia control with separate 3.5 mm auxiliary support
- No software or drivers required
- Independent HID keyboard and mouse ports

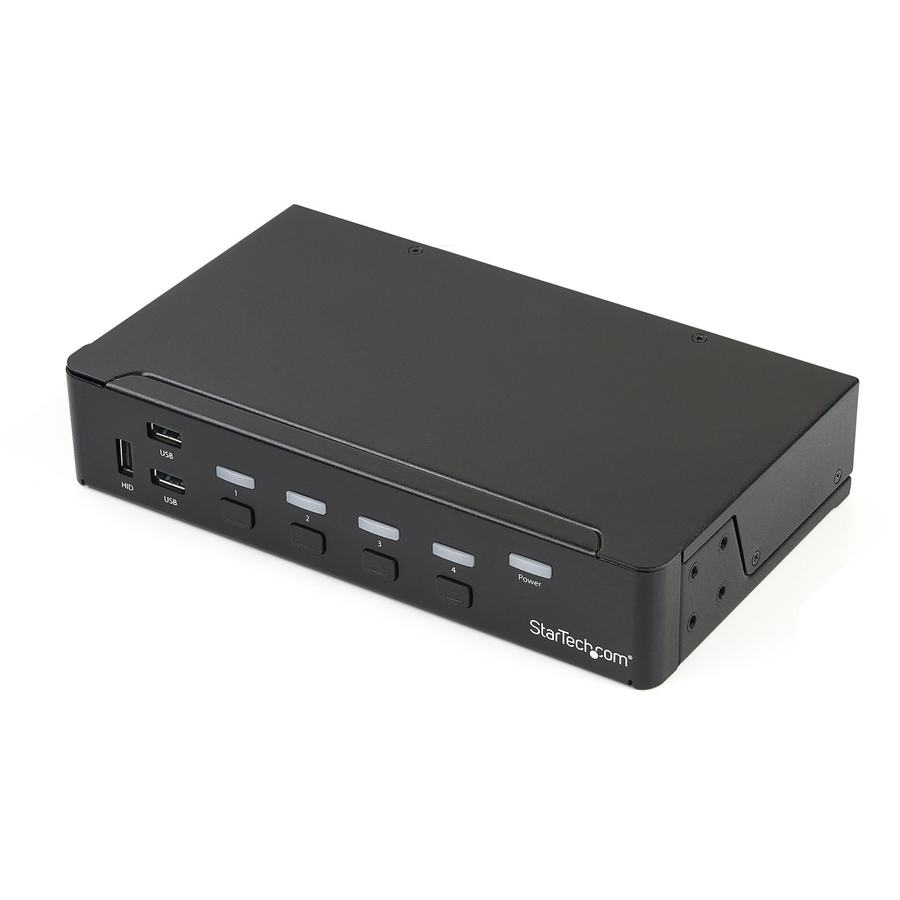

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
4 Computer(s) - 1 Local User(s) - 3840 x 2160 - 11 x USB - 5 x DisplayPort - 1U - Rack-mountable, Desktop - TAA Compliant
Product Details
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV431DPU3A2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 4-Port DisplayPort KVM Switch - USB 3.0 - 4K |
| Marketing Information |
This4-Port USB 3.0 DisplayPortKVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard andmouse. The KVM also features 3.5 mm audio and abuilt-in 3-port USB 3.0 hub. Convenient and cost-effective USB 3.0 peripheral sharing This KVM switch offers a built-in3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connectedcomputer and avoid the expense of separate equipment. The USB 3.0hub automatically switches your connected USB devices to the selected computer, saving you the hassle ofdisconnectingand reconnecting your peripherals. With support for USB 3.0, you can achieve datatransferrates up to 5Gbps, toensureflawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives. Astonishing picture quality Offering support for resolutions up toUltra HD 4K at 30 Hz, this 4-port DisplayPortKVM switch has the ability to drive large DPdisplayswith ease, making it ideal for graphical applications that require high-resolutionvideo support. Complete multimedia control The KVM switch features auxiliary 3.5 mm audio ports thatenableyou to share independent analog audio, from each of your connected computers,with yourdesktop speaker set. Independent audio,along with 4K DPvideo, givesyou full multimediacontrol between different computers, making this KVM perfect for creative professional applications such as video and sound design orediting. The SV431DPU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support. Rackmount your KVM switch If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM. More from the Manufacturer |
| Packaged Quantity | 1 Each |
| Product Type | KVM Switchbox |
Technical Information
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
Video
| Maximum Video Resolution | 3840 x 2160 |
Interfaces/Ports
| USB | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 11 |
| Number of DisplayPorts | 5 |
Power Description
| Input Voltage |
|
| Input Voltage Range | 100V AC to 240V AC |
Physical Characteristics
| Form Factor |
|
| Rack Height | 1U |
| Height | 1.7" |
| Width | 5.1" |
| Depth | 8.7" |
| Weight (Approximate) | 2.34 lb |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
Warranty
| Limited Warranty | 2 Year |
